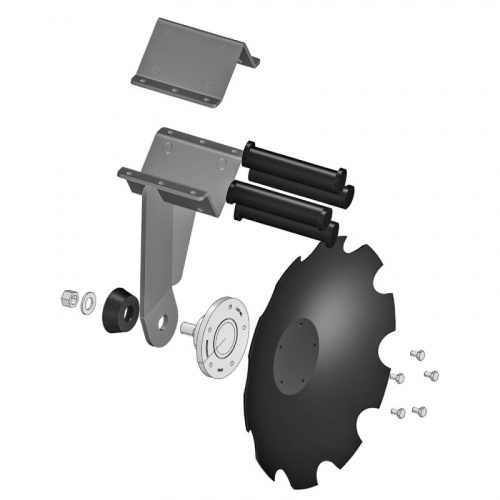

Rapid tillage systems: supports for cultivator disc
| COD. | DIMENSION | NOTE | MATCHED HUB | SUGGESTED DISCS (DIAMETER mm) |
||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| mm | mm | mm | mm | mm | ||||
| RT000015 | 392 | 40 | 100 | 100 | 30 | REAR | CC0000080 | 560, 610 |
| RT000016 | 392 | 40 | 100 | 100 | 30 | FRONT | CC0000080 | |
| RT000017 | 392 | 40 | 100 | 100 | 28 | REAR | CC0000055 CC0000056 CC0000057 |
|
| RT000018 | 392 | 40 | 100 | 100 | 28 | FRONT | CC0000055 CC0000056 CC0000057 |
|
| RT000019 | 392 | 40 | 100 | 100 | 36 | REAR | CC0000058 | |
| RT000020 | 392 | 40 | 100 | 100 | 36 | FRONT | CC0000058 | |
| RT000021 | 330 | 65 | 80 | 80 | 28 | REAR | CC0000055 CC0000056 CC0000057 |
460 |
| RT000022 | 330 | 65 | 80 | 80 | 28 | FRONT | CC0000055 CC0000056 CC0000057 |
|
| RT000023 | 360 | 65 | 80 | 80 | 28 | REAR | CC0000055 CC0000056 CC0000057 |
460, 510 |
| RT000024 | 360 | 65 | 80 | 80 | 28 | FRONT | CC0000055 CC0000056 CC0000057 |
|
| RT000025 | 360 | 65 | 80 | 80 | 30 | REAR | CC0000080 | |
| RT000026 | 360 | 65 | 80 | 80 | 30 | FRONT | CC0000080 | |
| RT000027 | 360 | 65 | 80 | 80 | 36 | REAR | CC0000058 | |
| RT000028 | 360 | 65 | 80 | 80 | 36 | FRONT | CC0000058 | |
With the RT System is included the central block with closing support and the hub protection cap.*
*Screw kit on request
Silent blocks - Standard
| COD. | DIMENSION | |
|---|---|---|
| D | L | |
| mm | mm | |
| G-SB25X90 | 25 | 90 |
| G-SB28.5X90 | 28,5 | 90 |
| G-SB30X80 | 30 | 80 |
| G-SB30X90 | 30 | 90 |
| G-SB30X120 | 30 | 120 |
| G-SB30X150 | 30 | 150 |
| G-SB30X255 | 30 | 255 |
| G-SB35X180 | 35 | 180 |
| G-SB35X210 | 35 | 210 |
| G-SB40X150 | 40 | 150 |
| G-SB40X180 | 40 | 180 |
| G-SB40X200 | 40 | 200 |
| G-SB40X205 | 40 | 205 |
| G-SB40X210 | 40 | 210 |
| G-SB40X230 | 40 | 230 |
| G-SB40X275 | 40 | 275 |
| G-SB40X330 | 40 | 330 |
| G-SB50X190 | 50 | 190 |
| G-SB50X210 | 50 | 210 |
| G-SB50X220 | 50 | 220 |
| G-SB50X240 | 50 | 240 |
Different diameters and lengths can be mounted.
Silent blocks - Special shape
| COD. | DIMENSION | NOTE | ||
|---|---|---|---|---|
| A | D | L | ||
| mm | mm | mm | ||
| G-SB40X220 | 50 | 40 | 220 | with stop |
| G-SB50X220 | 60 | 50 | 220 | with stop |
| G-TSB37X200 | 37,7 | 66 | 205 | triangular |
Different diameters and lengths can be mounted.
